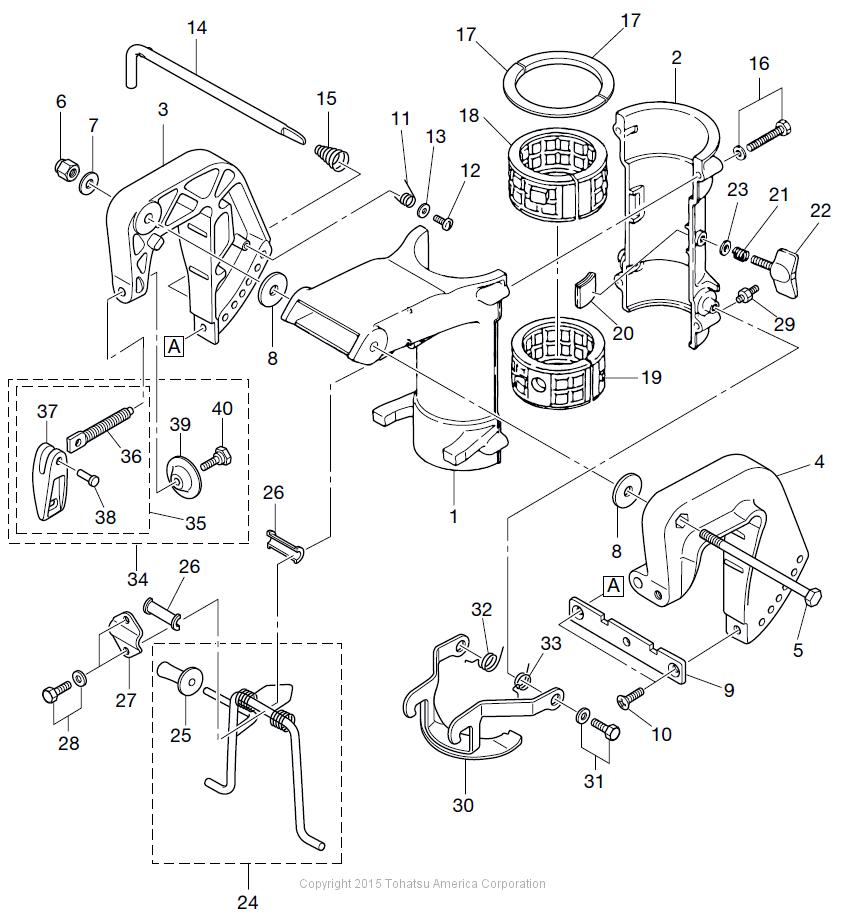

BRACKET & REVERSE LOCK ARM

Figure 8
for Model # M4C
(Click Item # for details)

Price Display

(1) SWIVEL BRACKET(2) SWIVEL BRACKET(3) CLAMP BRACKET (R)(4) CLAMP BRACKET (L)(5) BOLT 8-122(6) NYLON NUT 8-P1.25(7) WASHER(8) WASHER 8.5-28-1(8) WASHER 8.5-28-1(9) DISTANCE PLATE(10) SCREW(11) STERN BRACKET SPRING(12) SCREW(13) WASHER 4.3-16-1.5(14) THRUST ROD(15) THRUST ROD SPRING(16) BOLT(17) THRUST PLATE (UPPER)(17) THRUST PLATE (UPPER)(18) BUSHING(19) BUSHING(20) FRICTION PIECE(21) SPRING(22) FRICTION KNOB(23) WASHER(24) TILT STOPPER ASSY(25) TILT STOPPER GRIP(26) BUSHING(26) BUSHING(27) SETTING PLATE(28) BOLT(29) GREASE FITTING(30) REVERSE LOCK ARM(31) BOLT(32) REVERSE LOCK SPRING (R)(33) REVERSE LOCK SPRING (L)(34) CLAMP SCREW KIT(35) CLAMP SCREW ASSY(36) CLAMP SCREW(37) CLAMP SCREW HANDLE(38) RIVET 3-22(39) CLAMP SCREW PAD(40) SHOULDER BOLT
