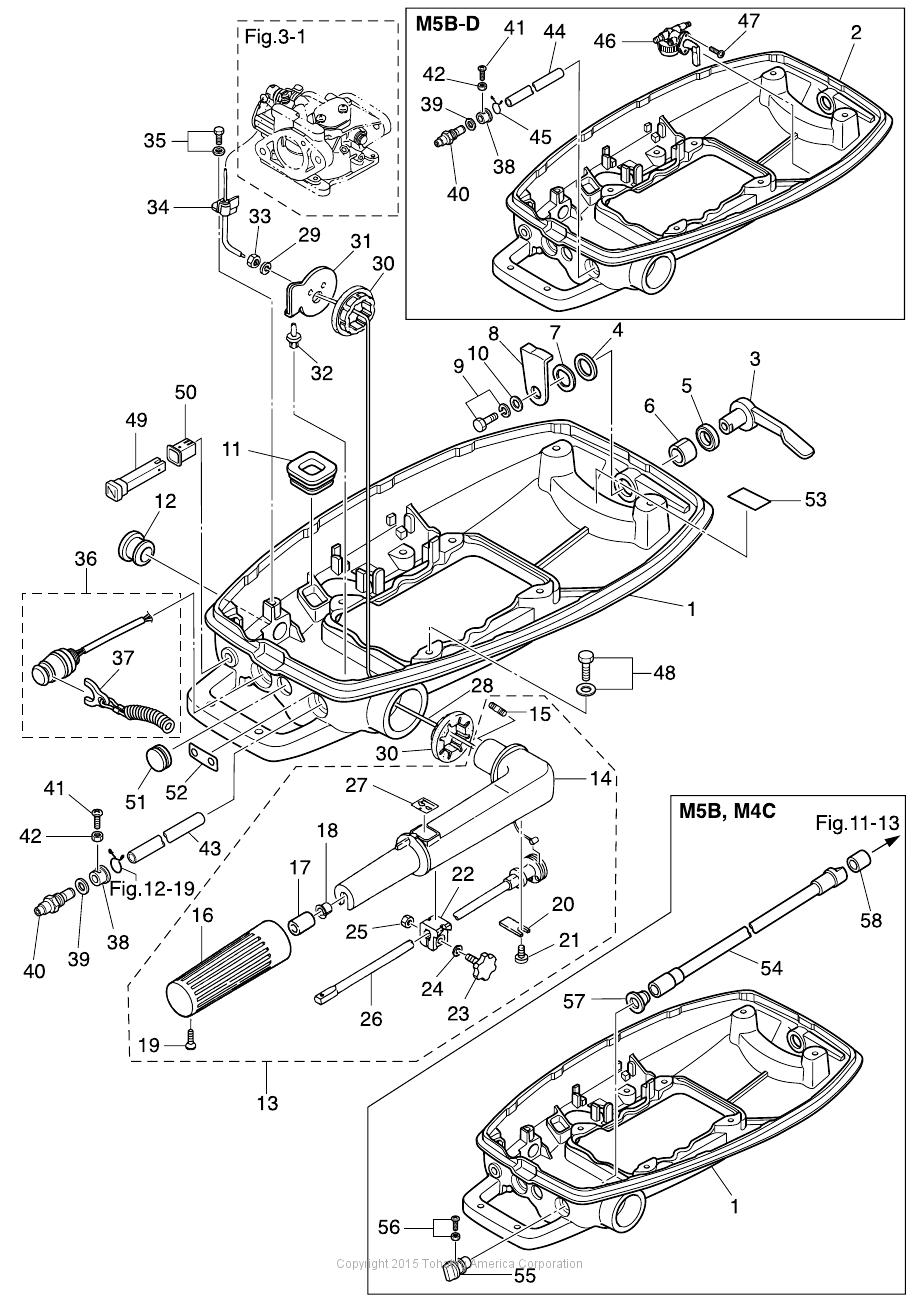

BOTTOM COWL & TILLER HANDLE

Figure 9
for Model # M5B
(Click Item # for details)

Price Display

(1) BOTTOM COWL(1) BOTTOM COWL(2) BOTTOM COWL(3) HOOK LEVER(4) WASHER 14-22-1(5) SEAL RING 13.8-22-3.7(6) HOOK LEVER BUSHING(7) WAVE WASHER D=14(8) COVER HOOK(9) BOLT(10) WASHER 6-16-1.5(11) GROMMET(12) GROMMET(13) TILLER HANDLE ASSY(14) TILLER HANDLE(15) STUD(16) GRIP(17) THROTTLE SHAFT DAMPER(18) BUSHING 8.4-10-11(19) SCREW(20) THROTTLE SHAFT SUPPORT(21) SCREW(22) FRICTION PIECE(23) ADJUSTING SCREW(24) WASHER(25) NUT(26) THROTTLE SHAFT(27) THROTTLE DECAL(28) THROTTLE WIRE(29) SPRING WASHER(30) BUSHING(30) BUSHING(31) STEERING HANDLE STOPPER(32) PLASTIC RIVET 6.5(33) NUT(34) THROTTLE WIRE BRACKET(35) BOLT(36) STOP SWITCH ASSY(37) STOP SWITCH LANYARD ASSY(38) BUSHING(38) BUSHING(39) SPRING WASHER(39) SPRING WASHER(40) FUEL CONNECTOR (MALE)(40) FUEL CONNECTOR (MALE)(41) SCREW(41) SCREW(42) NUT(42) NUT(43) HOSE(44) HOSE(45) CLIP ø10(46) FUEL COCK ASSY(47) SCREW(48) BOLT(49) CHOKE ROD(50) CHOKE ROD BUSHING(51) GROMMET 17-2.7(52) FUEL LEVEL DECAL(53) SPARK PLUG DECAL (BPR7HS10)(54) FUEL COCK ROD(55) FUEL COCK KNOB(56) SCREW(57) SEAL RING(58) FUEL COCK ROD HOSE
