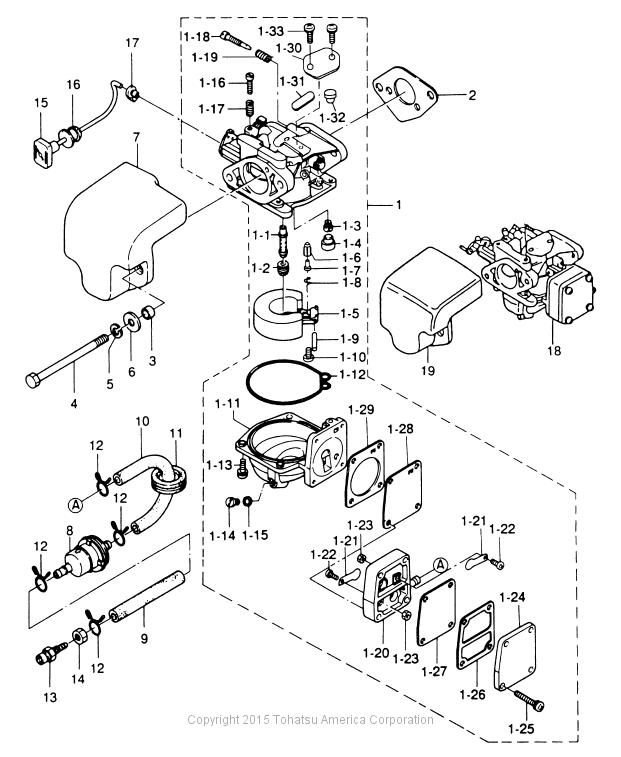

CARBURETOR

Figure 4
for Model # M8B
(Click Item # for details)

Price Display

(1) CARBURETOR(1-1) MAIN NOZZLE(1-2) MAIN JET # 98(1-3) SLOW JET # 48(1-4) RUBBER CAP(1-5) FLOAT(1-6) FLOAT VALVE(1-7) VALVE PIN(1-8) CLIP(1-9) ARM PIN, FLOAT(1-10) SCREW(1-11) FLOAT CHAMBER(1-12) O-RING, FLOAT CHAMBER(1-13) SCREW(1-14) DRAIN SCREW(1-15) GASKET, DRAIN SCREW(1-16) STOP SCREW(1-17) SPRING "A"(1-18) ADJUST SCREW(1-19) SPRING "B"(1-20) PUMP BODY(1-21) CHECK VALVE(1-21) CHECK VALVE(1-22) SCREW(1-22) SCREW(1-23) NUT(1-23) NUT(1-24) PUMP COVER(1-25) SCREW(1-26) GASKET, PUMP COVER(1-27) DIAPHRAGM "A"(1-28) DIAPHRAGM "B"(1-29) GASKET, PUMP BODY(1-30) CARBURETOR COVER(1-31) GASKET "A", CARBURETOR COVER(1-32) GASKET "B", CARBURETOR COVER(1-33) SCREW(2) GASKET, CARBURETOR(3) SPACER, AIR SILENCER(4) BOLT(5) SPRING WASHER(6) WASHER, 6-16-1.5(7) AIR SILENCER(8) FUEL FILTER(9) FUEL PIPE "A"(10) FUEL PIPE "B"(11) GROMMET, 22-2.5(12) CLIP, ø 10(12) CLIP, ø 10(12) CLIP, ø 10(12) CLIP, ø 10(13) FUEL CONNECTOR (ENGINE, MALE)(14) NUT, 10-P1.25(15) CHOKE ROD(16) GROMMET, CHOKE ROD(17) ROD SNAP, ø 3-B(18) CARBURETOR (EP)(19) AIR SILENCER (EP)
