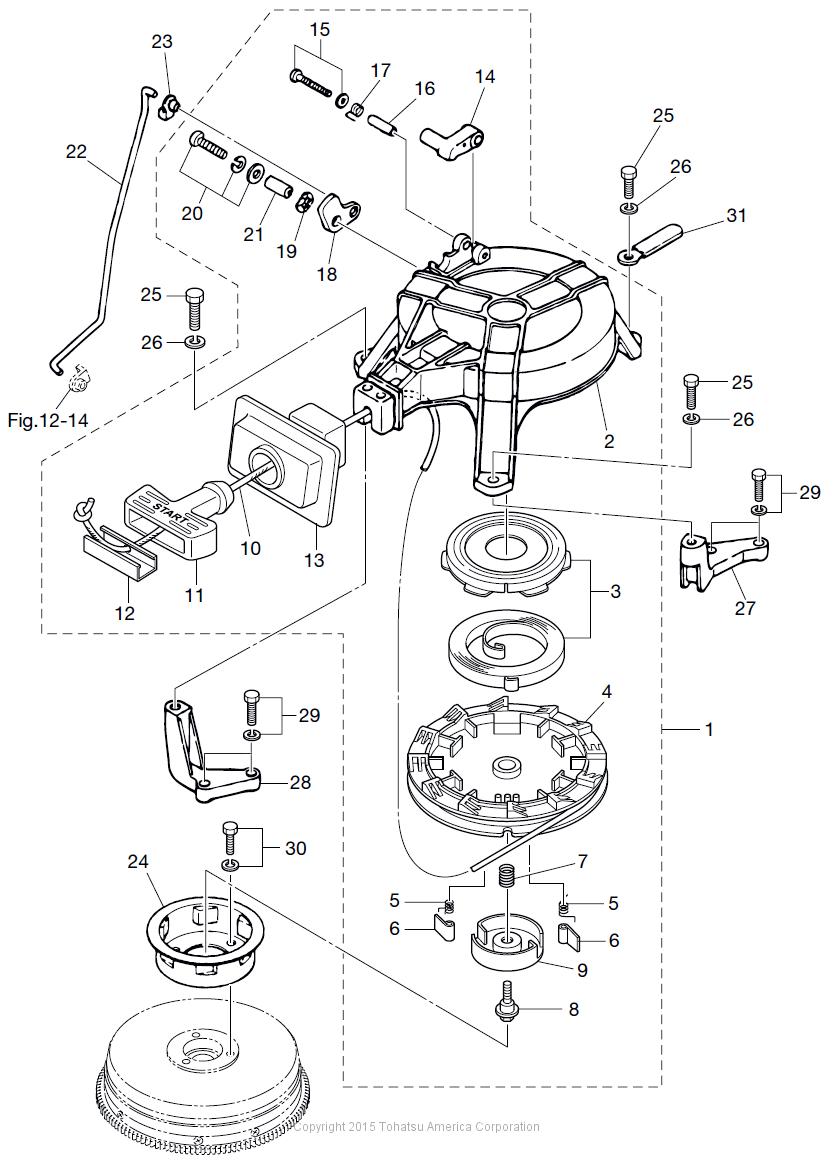

RECOIL STARTER & STARTER LOCK

Figure 5
for Model # M9.8B
(Click Item # for details)

Price Display

(1) RECOIL STARTER ASSY(2) STARTER CASE(3) STARTER SPRING SET(4) REEL(5) RETURN SPRING(5) RETURN SPRING(6) RATCHET(6) RATCHET(7) FRICTION SPRING(8) BOLT(9) FRICTION PLATE(10) STARTER ROPE ø4.5-1620(11) STARTER HANDLE(12) ROPE ANCHOR(13) SEALING PLATE(14) STARTER LOCK(15) SCREW(16) COLLAR 4-6-21(17) STARTER LOCK SPRING(18) STARTER LOCK CAM(19) WAVE WASHER D=8(20) SCREW(21) COLLAR 6.1-8-4(22) STARTER LOCK ROD(23) ROD SNAP 4-2(24) STARTER PULLEY(25) BOLT(25) BOLT(25) BOLT(26) SPRING WASHER(26) SPRING WASHER(26) SPRING WASHER(27) BRACKET(28) BRACKET(29) BOLT(29) BOLT(30) BOLT(31) CLAMP 6.5-47.5P
