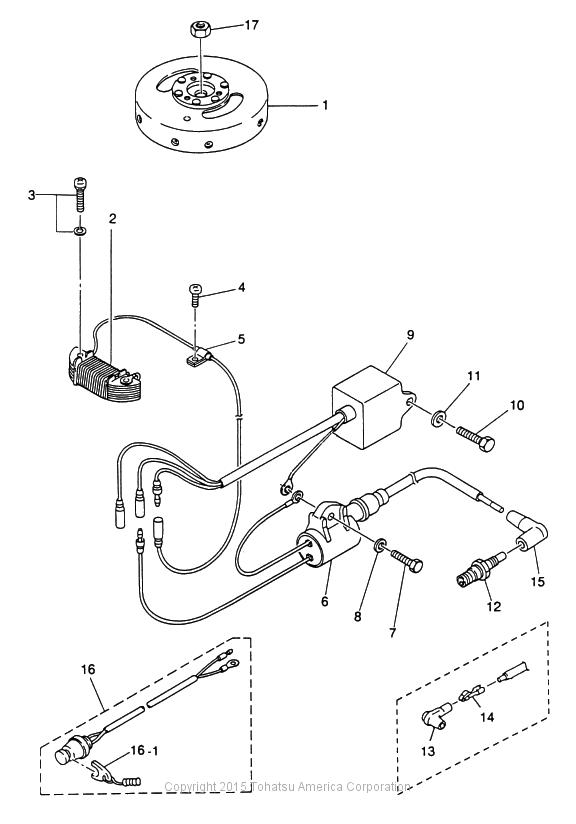

MAGNETO

Figure 3
for Model # M2.5A2
(Click Item # for details)

Price Display

(1) FLYWHEEL CUP(2) EXCITER COIL(3) SCREW(4) SCREW(5) HOLDER(6) IGNITION COIL(7) BOLT(8) WASHER, 6-16-1.5(9) C. D. UNIT(10) BOLT(11) WASHER, 6-16-1.5(12) SPARK PLUG(12) SPARK PLUG ( WITH RESISTANCE)(13) PLUG CAP(14) TERMINAL, PLUG CAP(15) PLUG CAP ( WITH RESISTANCE)(16) LANYARD STOP SWITCH(16-1) LOCK, LANYARD STOP SWITCH(17) NUT, MAGNETO (10P-1.25)
