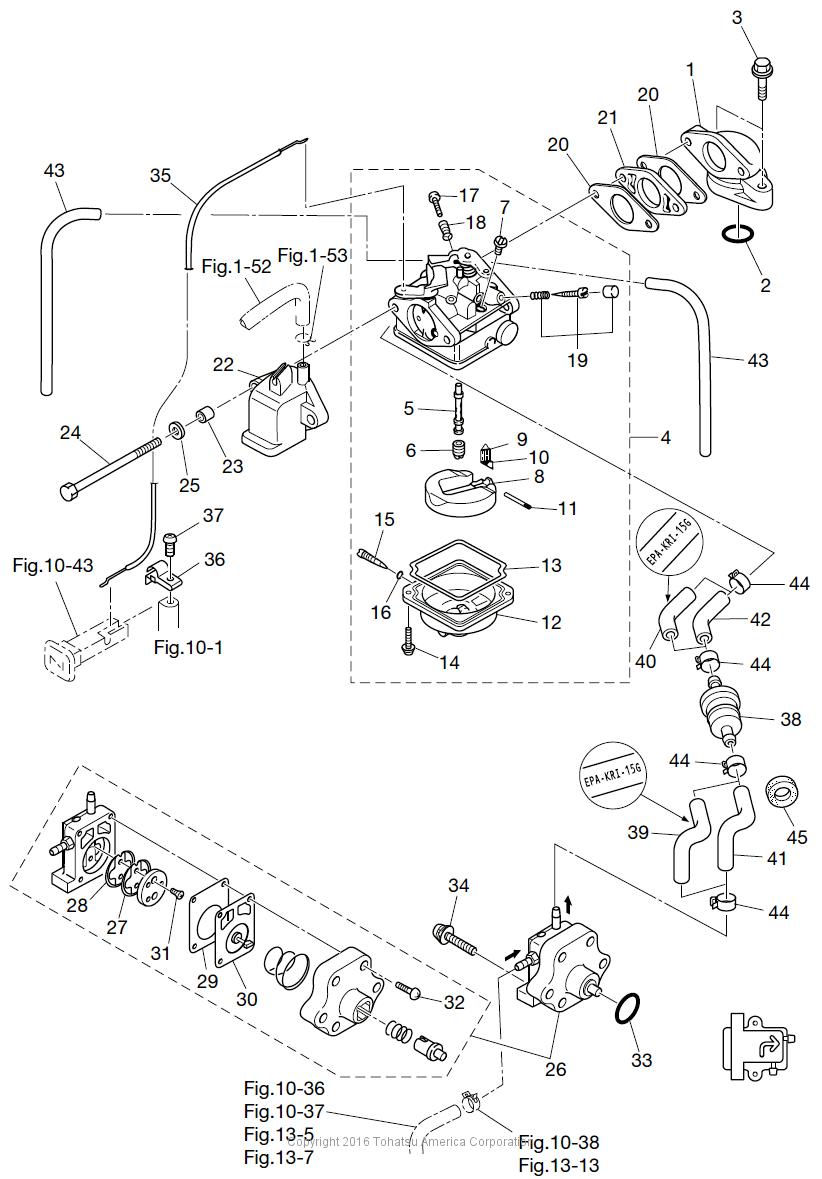

CARBURETOR & FUEL PUMP

Figure 4
for Model # MFS5C
(Click Item # for details)

Price Display

(1) INTAKE MANIFOLD ASSY(2) INTAKE MANIFOLD GASKET 2-33.5(3) BOLT(4) CARBURETOR ASSY(5) MAIN NOZZLE(6) MAIN JET (#68)(7) SLOW JET (#38)(8) FLOAT(9) FLOAT VALVE(10) CLIP(11) FLOAT ARM PIN(12) FLOAT CHAMBER(13) FLOAT CHAMBER O-RING(14) SCREW(15) DRAIN SCREW(16) O-RING(17) STOP SCREW(18) SPRING(19) PILOT SCREW(20) CARBURETOR GASKET(20) CARBURETOR GASKET(21) INSULATOR(22) INTAKE SILENCER ASSY(23) COLLAR 6.2-9-7.4(24) BOLT(25) WASHER(26) FUEL PUMP ASSY(27) CHECK VALVE(28) CHECK VALVE(29) PUMP BODY GASKET(30) PUMP DIAPHRAGM(31) SCREW(32) SCREW(33) O-RING 2.6-18.7(34) SCREW(35) CHOKE WIRE(36) CABLE HOLDER(37) SCREW(38) FUEL FILTER ASSY(39) LOW PERMEATION HOSE 24-29-24(40) LOW PERMEATION HOSE L=60(41) FUEL HOSE 24-29-24(42) FUEL HOSE L=60(43) HOSE(43) HOSE(44) CLIP ø9.4(44) CLIP ø9.4(44) CLIP ø9.4(44) CLIP ø9.4(45) RUBBER MOUNT 9-16-4.3
