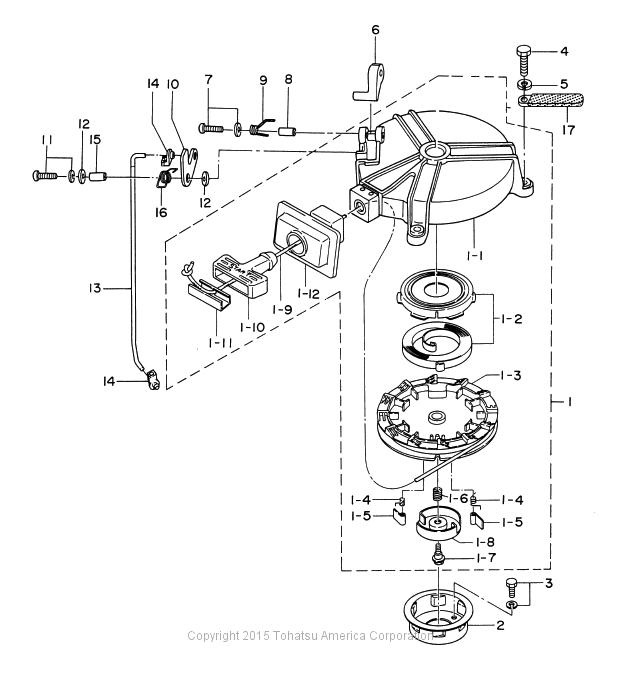

RECOIL STARTER & STARTER LOCK

Figure 8
for Model # MFS4A2
(Click Item # for details)

Price Display

(1) RECOIL STARTER ASSY(1-1) STARTER CASE(1-2) STARTER SPRING SET(1-3) REEL(1-4) RETURN SPRING(1-4) RETURN SPRING(1-5) RATCHET(1-5) RATCHET(1-6) FRICTION SPRING(1-7) BOLT, STARTER SHAFT(1-8) FRICTION PLATE(1-9) STARTER ROPE(1-10) STARTER HANDLE(1-11) ROPE ANCHOR(1-12) SEAL PLATE, STARTER(2) STARTER PULLEY(3) BOLT(4) BOLT(5) SPRING WASHER(6) STARTER LOCK(7) SCREW(8) COLLAR, 4- 6- 21(9) SPRING, STARTER LOCK(10) CAM, STARTER LOCK(11) SCREW(12) WASHER(12) WASHER(13) ROD, STARTER LOCK(14) ROD SNAP, 3.5-2(14) ROD SNAP, 3.5-2(15) COLLAR, 6.1- 8- 6.5(16) SPRING, STARTER LOCK CAM(17) CLAMP, 6.5 - 47.5
