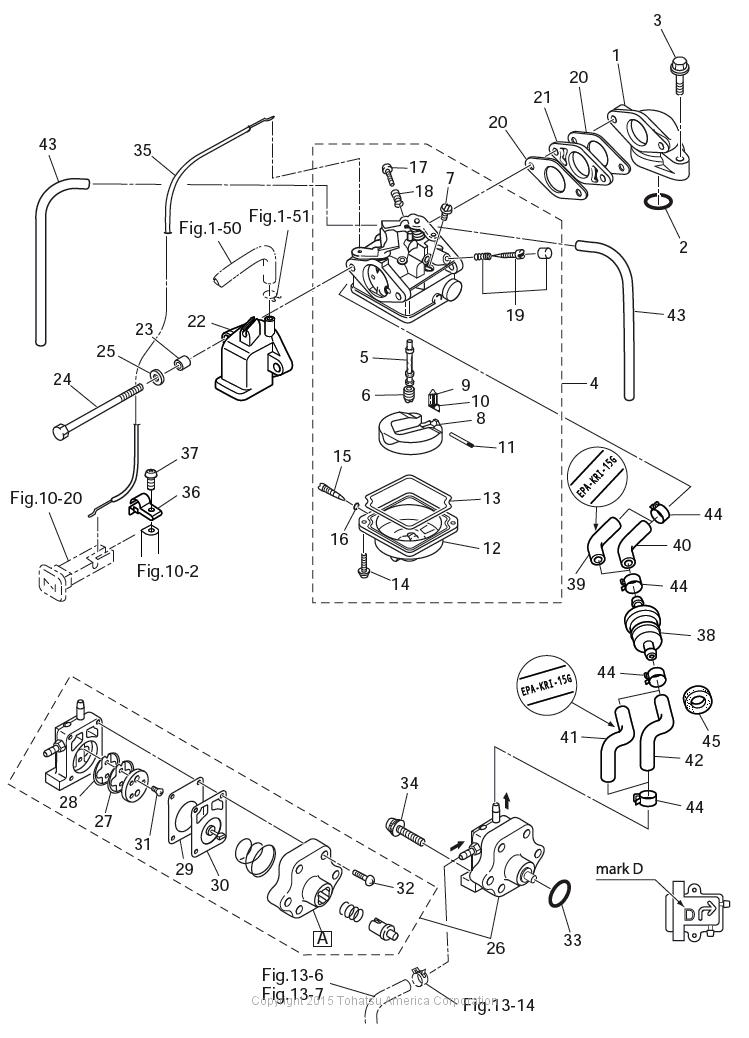

CARBURETOR - FUEL PUMP

Figure 4
for Model # MFS5C
(Click Item # for details)

Price Display

(1) INTAKE MANIFOLD ASSY(2) INTAKE MANIFOLD GASKET(3) BOLT(4) CARBURETOR ASSY(5) MAIN NOZZLE(6) MAIN JET (#68)(7) SLOW JET (#38)(8) FLOAT(9) FLOAT VALVE(10) CLIP(11) FLOAT ARM PIN(12) FLOAT CHAMBER(13) FLOAT CHAMBER O-RING(14) SCREW(15) DRAIN SCREW(16) O-RING DRAIN SCREW(17) STOP SCREW(18) SPRING STOP SCREW(19) PILOT SCREW(20) CARBURETOR GASKET(20) CARBURETOR GASKET(21) INSULATOR(22) INTAKE SILENCER(23) COLLAR 6.2-9-7.4(24) BOLT 6-85(25) WASHER(26) FUEL PUMP ASSY(27) CHECK VALVE (P)(28) CHECK VALVE ®(29) PUMP BODY GASKET(30) PUMP DIAPHRAGM(31) SCREW(32) SCREW(33) O-RING 2.62-18.72(34) SCREW(35) CHOKE WIRE(36) CABLE HOLDER(37) SCREW(38) FUEL FILTER ASSY(39) LOW PERMEATION HOSE(40) FUEL HOSE(41) LOW PERMEATION HOSE(42) FUEL HOSE(43) HOSE(43) HOSE(44) CLIP(44) CLIP(44) CLIP(44) CLIP(45) MOUNT RUBBER 9-16-4.3
