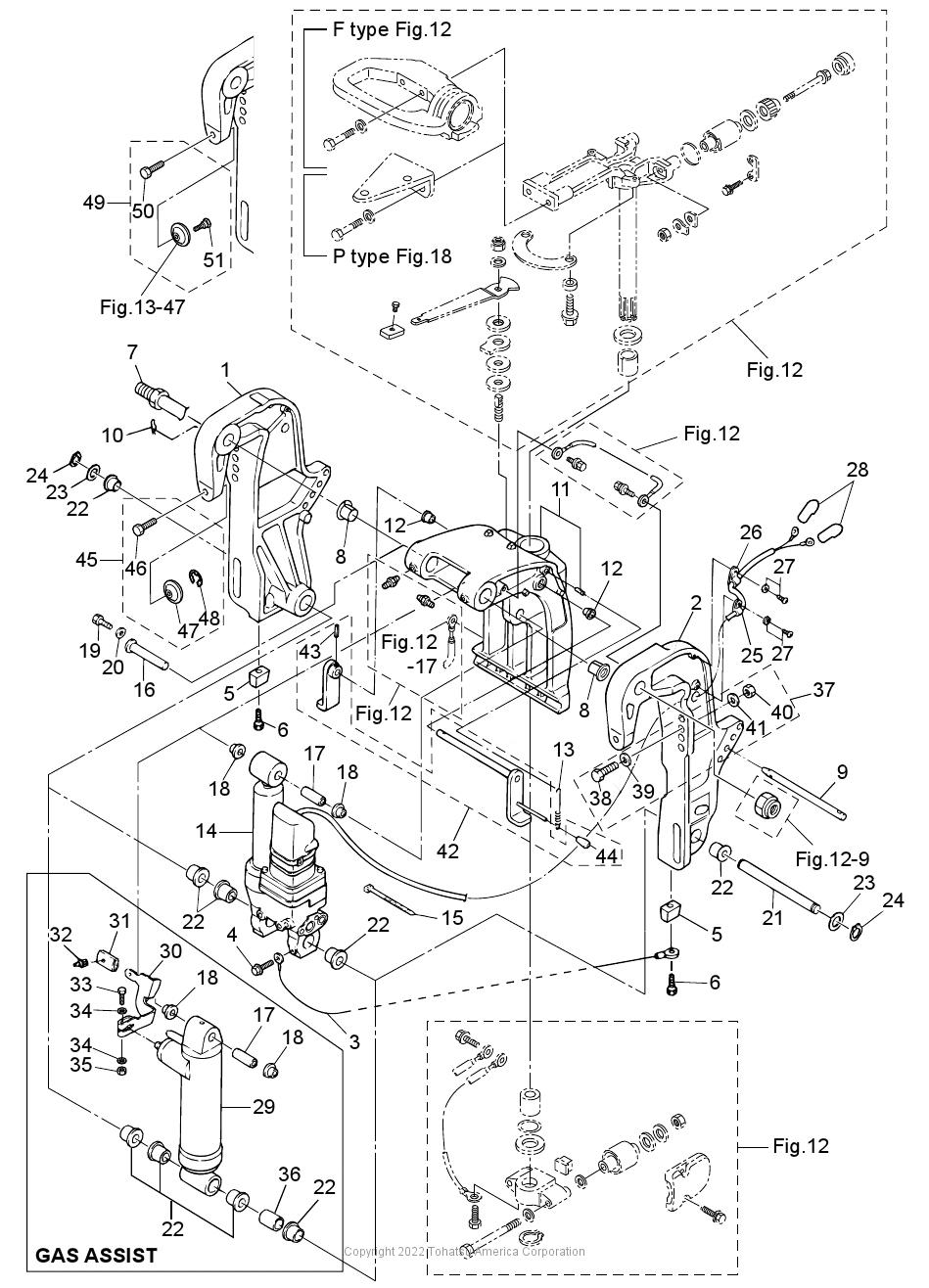

BRACKET (PTT & GAS ASSIST)

Figure 13
for Model # MFS30C
(Click Item # for details)

Price Display

(1) CLAMP BRACKET (PTT-R)(1) CLAMP BRACKET (PTT-R)(1) CLAMP BRACKET (PTT-R)(2) CLAMP BRACKET (PTT-L)(2) CLAMP BRACKET (PTT-L)(2) CLAMP BRACKET (PTT-L)(3) GROUND L=130(4) BOLT(5) ANODE(5) ANODE(6) BOLT(6) BOLT(7) SWIVEL BRACKET SHAFT ASSY(8) BUSHING(8) BUSHING(9) PTT THRUST ROD(10) SNAP PIN(11) SWIVEL BRACKET ASSY(11) SWIVEL BRACKET ASSY(12) COLLAR 10.2-12-12(12) COLLAR 10.2-12-12(13) TILT STOPPER SPRING(14) PT ASSY(15) BAND LEAD WIRE 300(16) CYLINDER PIN (UPPER)(17) BUSHING 13-16-40(17) BUSHING 13-16-40(18) BUSHING 13-17-19.5(18) BUSHING 13-17-19.5(18) BUSHING 13-17-19.5(18) BUSHING 13-17-19.5(19) BOLT(20) WASHER 6.5-23-1.5(21) CYLINDER PIN (LOWER)(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(22) BUSHING 18-24-22(23) WASHER 18.2-34-1(23) WASHER 18.2-34-1(24) C-RING D=18(24) C-RING D=18(25) CLAMP 6-9.5L(26) CLAMP 6.5-14L(27) SCREW(27) SCREW(28) TERMINAL CAP 8-13-28(29) GAS SHOCK ABSORBER(30) REVERSE LOCK LEVER(31) REVERSE LOCK LEVER GRIP(32) STOPPER(33) BOLT 6-35(34) WASHER(34) WASHER(35) NUT(36) COLLAR 18.2-21.7-30(37) RIGGING BOLT SET(38) BOLT 12-105 P1.25(39) WASHER 13-34-3(40) NYLON NUT 12-P1.25(41) WASHER(42) TILT STOPPER KIT(42) TILT STOPPER KIT(43) SPRING PIN 3.5-16(44) TILT STOPPER GRIP(45) CLAMP SCREW KIT(46) CLAMP SCREW (PTT)(47) CLAMP SCREW PAD(48) E-RING D=5(49) CLAMP SCREW KIT(50) CLAMP SCREW (PTT)(51) SHOULDER BOLT
