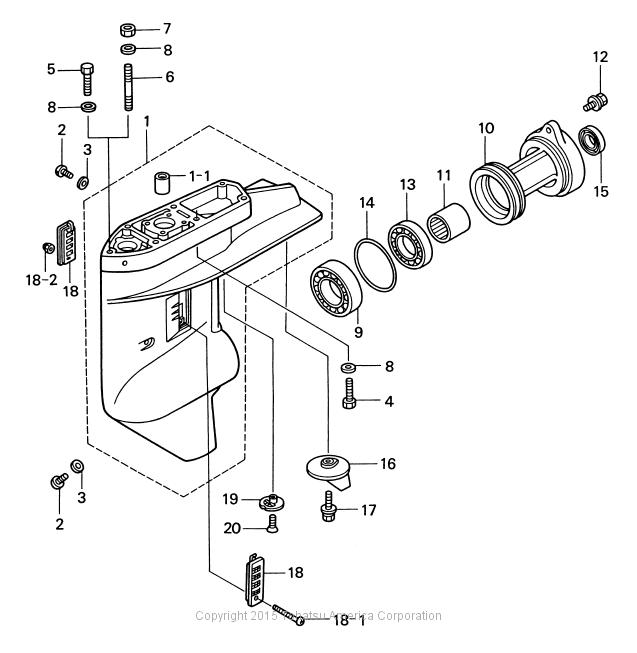

GEAR CASE

Figure 14
for Model # MFS30A
(Click Item # for details)

Price Display

(1) GEAR CASE ASSY(1-1) NEEDLE BEARING, 20 - 27 - 30(2) OIL PLUG(2) OIL PLUG(3) GASKET, 8.1 -15 -1(3) GASKET, 8.1 -15 -1(4) BOLT(5) BOLT(6) STUD BOLT(7) NUT(8) WASHER(8) WASHER(8) WASHER(9) BEARING, 30205(10) HOUSING, PROPELLER SHAFT(11) NEEDLE BEARING,18 - 25 - 25(12) BOLT(13) BEARING, 6205(14) O-RING, 3 - 62.5(15) OIL SEAL, 18 - 28 - 8(16) TRIM TAB(17) BOLT(18) WATER STRAINER SET(18) WATER STRAINER SET(18-1) SCREW(18-2) NYLON NUT, 4 P0.7(19) STRAINER, SUB WATER(20) SCREW
