ASSEMBLY - KIT

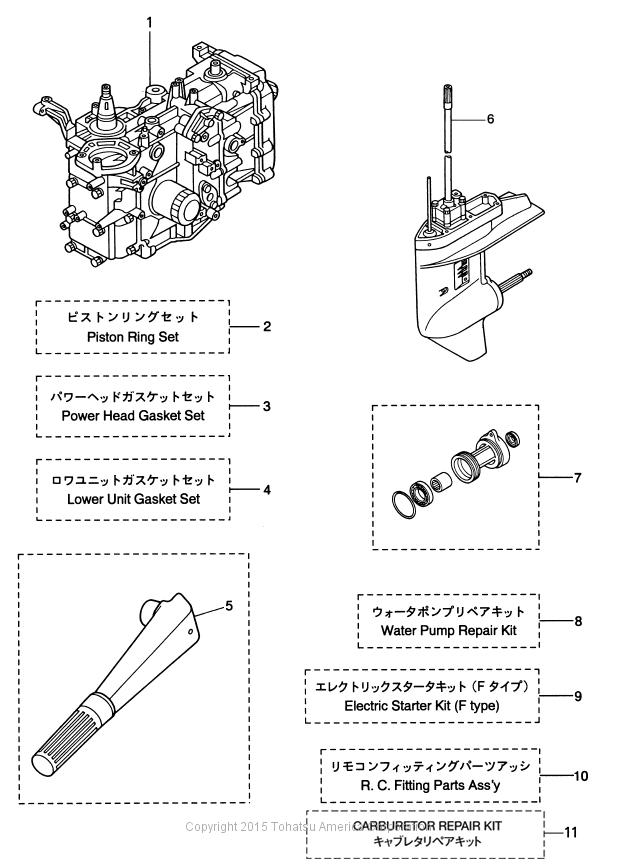

Figure 25
for Model # MFS30A
(Click Item # for details)

Price Display

(1) ENGINE SHORT BLOCK(2) PISTON RING SET (STD)(2) PISTON RING TOP (STD)(2) PISTON RING 2ND (STD)(2) PISTON RING OIL (STD)(2) PISTON RING SET (0.5MM O/S)(2) PISTON RING TOP (0.5MM O/S)(2) PISTON RING 2ND (0.5MM O/S)(2) PISTON RING OIL (0.5MM O/S)(3) POWER HEAD GASKET SET(3) GASKET, CYLINDER HEAD(3) GASKET, HEAD COVER(3) O-RING, 3.1- 24.4(3) GASKET(3) GASKET(3) OIL SEAL, 35 - 50 - 8(3) OIL SEAL, 38 - 50 - 8(3) GASKET, INLET MANIFOLD(3) GASKET, CARBURETOR(3) O-RING,1.9 - 38.8(3) O-RING, OIL PUMP OUTER(3) OIL SEAL,18 - 35 - 8(3) GASKET, ENGINE BASE(3) OIL SEAL,16 - 28 - 6(3) GASKET, DRIVE SHAFT HOUSING(4) LOWER UNIT GASKET SET(4) GASKET, OIL PLUG(4) O-RING, 3 - 62.5(4) OIL SEAL, 17 - 30 - 9(4) OIL SEAL, 18 - 28 - 8(4) O-RING, 3.5 - 36(4) O-RING, 2.4 - 5.8(4) O-RING, 3.5 - 21.7(4) GASKET, PUMP CASE(4) GASKET, GUIDE PLATE(4) LOWER UNIT GASKET SET(4) GASKET, OIL PLUG(4) O-RING, 3 - 62.5(4) OIL SEAL, 17 - 30 - 9(4) OIL SEAL, 18 - 28 - 8(4) O-RING, 3.5 - 36(4) O-RING, 2.4 - 5.8(4) O-RING, 3.5 - 21.7(4) GASKET, PUMP CASE(4) GASKET, GUIDE PLATE(5) HANDLE ASSY(6) LOWER UNIT ASSY "S"(6) LOWER UNIT ASSY "L"(7) PROPELLER SHAFT HOUSING ASSY(8) WATER PUMP REPAIR KIT(8) IMPELLER, WATER PUMP(8) KEY, PUMP IMPELLER(8) LINER, PUMP CASE(8) GUIDE PLATE, WATER PUMP(8) GASKET, PUMP CASE(8) GASKET, GUIDE PLATE(8) WATER PUMP REPAIR KIT(8) IMPELLER, WATER PUMP(8) KEY, PUMP IMPELLER(8) LINER, PUMP CASE(8) GUIDE PLATE, WATER PUMP(8) GASKET, PUMP CASE(8) GASKET, GUIDE PLATE(9) ELECTRIC STARTER KIT (F TYPE)(9) STARTER MOTOR(9) BOLT(9) BAND, STARTER MOTOR(9) BOLT(9) STARTER SOLENOID(9) SPACER, 6.2 - 9 - 27(9) BOLT(9) MAIN SWITCH(9) NEUTRAL SWITCH(9) ACTUATOR, NEUTRAL SWITCH(9) BATTERY CORD (L=2000)(9) CAP, CORD(9) STARTER CORD (L=270)(9) CAP, CORD(9) FUSE HOLDER ASSY(9) STAY, FUSE HOLDER(9) BOLT(9) GROUND CABLE(9) BOLT(10) R. C. FITTING PARTS ASSY(10) SHIFT ARM(10) BOLT(10) WASHER, 6 -16 -1.5(10) COLLAR, 6.2 - 9 - 9.3(10) ROD SNAP, 5 - 3(10) LINK, 4.5 - 40.5(10) CABLE JOINT(10) CABLE JOINT(10) WASHER, 8.5 -18 -1.6(10) R-PIN, D=8(10) NUT(10) BRACKET, SHIFT ARM(10) BOLT(10) BRACKET, CABLE(10) BOLT(10) STEERING HOOK PLATE(10) BOLT(10) WASHER(10) PLUG B, CABLE TERMINAL(10) GROMMET, CONTROL CABLE(10) PLUG(11) CARBURETOR REPAIR KIT
