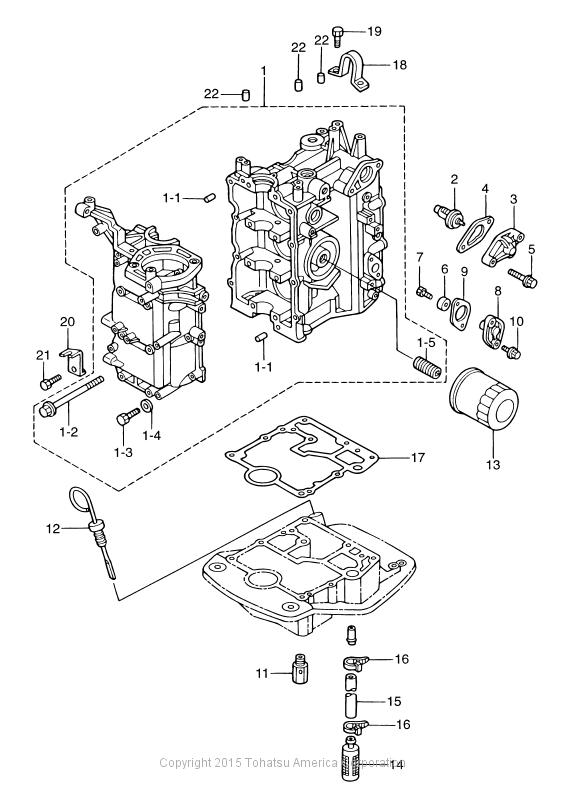

CYLINDER

Figure 2
for Model # MFS25B
(Click Item # for details)

Price Display

(1) CYLINDER-CRANK CASE(1-1) DOWEL PIN, 6-12(1-1) DOWEL PIN, 6-12(1-2) BOLT, 8-90(1-3) BOLT(1-4) WASHER(1-5) OIL FILTER BOLT(2) THERMOSTAT(3) THERMOSTAT CAP(4) THERMOSTAT CAP GASKET(5) BOLT(6) ANODE(7) BOLT(8) ANODE CAP(9) ANODE CAP GASKET(10) BOLT(11) PLUNGER(12) OIL LEVEL GAUGE(13) OIL FILTER(14) OIL STRAINER(15) HOSE(16) LEAD WIRE BAND, 150(16) LEAD WIRE BAND, 150(17) ENGINE BASEMENT GASKET(18) HANGER(19) BOLT(20) STARTER LOCK CABLE BRACKET(21) BOLT(22) DOWEL PIN, 6-12(22) DOWEL PIN, 6-12(22) DOWEL PIN, 6-12
