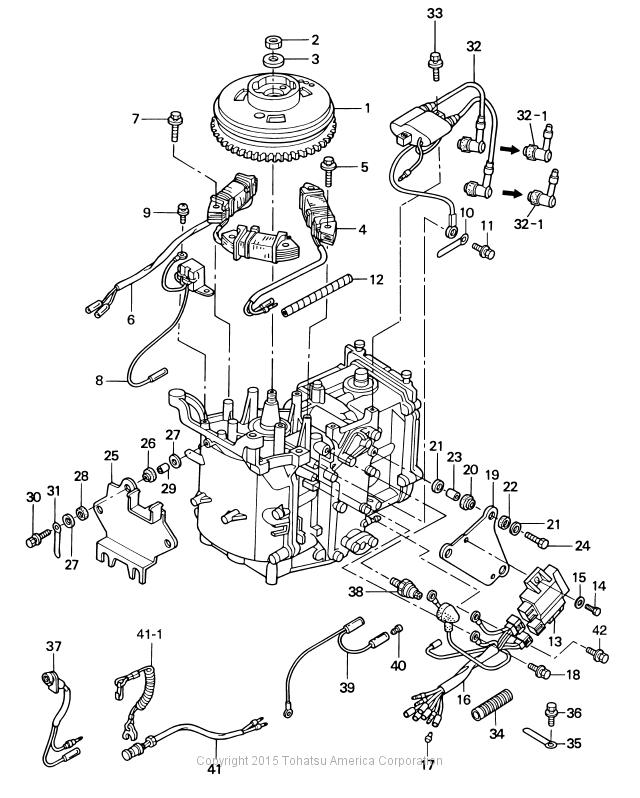

MAGNETO

Figure 8
for Model # MFS9.8A3
(Click Item # for details)

Price Display

(1) FLYWHEEL CUP(2) NUT, 12-P1.25(3) WASHER(4) EXCITER COIL(5) BOLT(6) ALTERNATOR(7) BOLT(9) SCREW(10) CLAMP, 6.5-47.5P(11) BOLT(12) SPIRAL TUBE PROTECTOR(13) C.D. UNIT (CU7256)(14) BOLT, 6-16 PRECOATED(15) WASHER, 6-16-1.5(16) C.D. UNIT CORD ASSY(17) CABLE TERMINAL PLUG(18) BOLT(19) C.D. UNIT BRACKET(20) RUBBER MOUNT,8.5-18-7(21) WASHER, 6-16-1.5(21) WASHER, 6-16-1.5(22) RUBBER MOUNT, 9-16-4.3(23) COLLAR, 6.2-9-7.4(24) BOLT(25) ELECTRIC BRACKET(26) RUBBER MOUNT, 8.5-18-7(27) WASHER, 6-16-1.5(27) WASHER, 6-16-1.5(28) RUBBER MOUNT 9-16-4.3(29) COLLAR, 6.2-9-7.4(30) BOLT(31) CLAMP, 6.5-87P(32) IGNITION COIL(32-1) PLUG CAP (WITH RESISTANCE)(32-1) PLUG CAP (WITH RESISTANCE)(33) BOLT(34) PROTECTOR(35) CLAMP, 6.5-87P(36) BOLT(37) WARNING LAMP(38) OIL PRESSURE SWITCH(39) SEPARATE CORD ( BLACK)(40) CABLE TERMINAL PLUG(41) STOP SWITCH(41-1) STOP SWITCH LANYARD(42) BOLT(8) PULSER COIL
