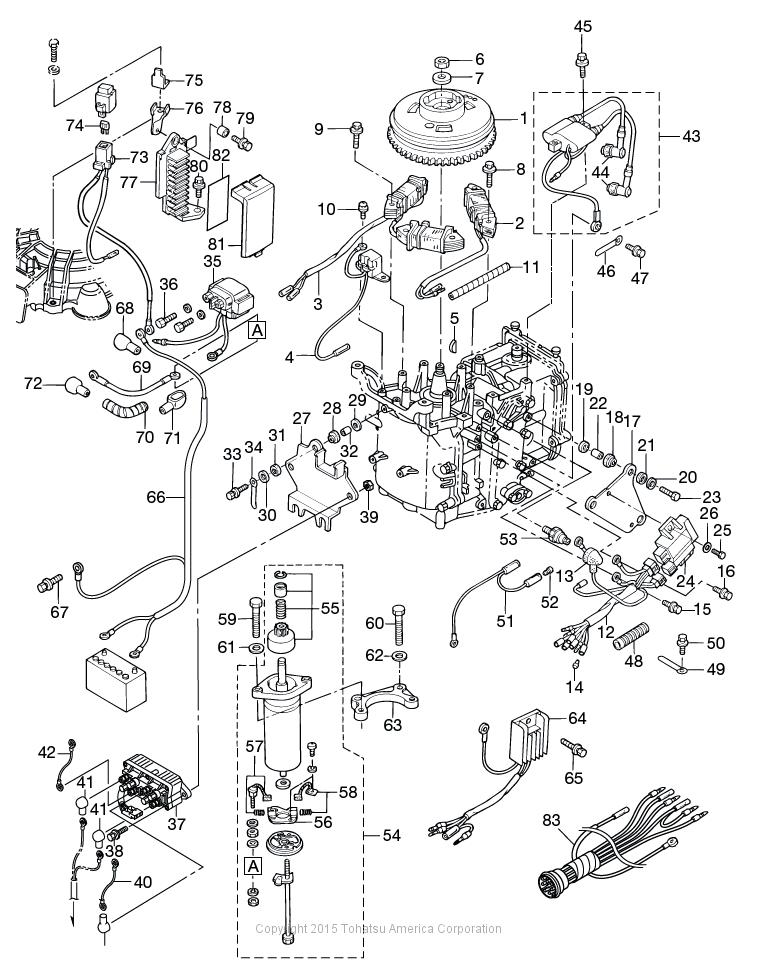

MAGNETO & ELECTRIC PARTS

Figure 8
for Model # MFS8A3
(Click Item # for details)

Price Display

(1) FLYWHEEL (W/GEAR)(2) EXCITER COIL(3) ALTERNATOR ASSY(4) PULSAR COIL(5) KEY DRIVE PULLEY(6) NUT 12-P1.25(7) WASHER(8) BOLT(9) BOLT(10) SCREW(11) SPIRAL TUBE PROTECTOR ø10-100(12) CD UNIT CORD ASSY(13) GROMMET OIL PRESSURE SWITCH(14) CABLE TERMINAL PLUG(15) BOLT W/WASHER(16) BOLT W/WASHER(17) CD UNIT BRACKET(18) RUBBER MOUNT(19) WASHER 6-16-1.5(20) WASHER 6-16-1.5(21) RUBBER MOUNT 9-16-4.3(22) COLLAR 6.2-9-7.4(23) BOLT(24) CD UNIT(25) PRE-COATED BOLT(26) WASHER 6-16-1.5(27) ELECTRIC BRACKET ASSY(28) RUBBER MOUNT(29) WASHER 6-16-1.5(30) WASHER 6-16-1.5(31) RUBBER MOUNT 9-16-4.3(32) COLLAR 6.2-9-7.4(33) BOLT(34) CLAMP 6.5-87P(35) STARTER SOLENOID(36) BOLT(37) PTT SOLENOID SWITCH (A)(38) BOLT(39) NUT(40) SOLENOID SWITCH CORD (A) L=80(41) TERMINAL CAP(41) TERMINAL CAP(41) TERMINAL CAP(41) TERMINAL CAP(42) SOLENOID SWITCH CORD (B) L=150(43) IGNITION COIL (W/RESISTANCE-CAP)(44) PLUG CAP W/RESISTANCE(45) BOLT(46) CLAMP 6.5-47.5P(47) BOLT 5-16(48) PROTECTOR ø34-70(49) CLAMP 6.5-87P(50) BOLT(51) SEPARATE CORD (BLACK)(52) CABLE TERMINAL PLUG(53) OIL PRESSURE SWITCH(54) STARTER MOTOR ASSY(55) PINION ASSY(56) BRUSH HOLDER(57) POSITIVE BRUSH (+)(58) NEGATIVE BRUSH (-)(59) BOLT(60) BOLT(61) WASHER(62) WASHER(63) STARTER MOTOR BRACKET(64) RECTIFIER COMPLETE(65) BOLT 5-16(66) BATTERY CABLE (L=2500)(67) BOLT(68) TERMINAL CAP(69) STARTER CABLE (L=200)(70) SPIRAL TUBE PROTECTOR ø10-100(71) TERMINAL CAP(72) TERMINAL CAP(73) FUSE WIRE ASSY L=185(74) FUSE 20A(75) FUSE HOLDER BRACKET(76) CABLE TERMINAL HOLDER STAY(77) CABLE TERMINAL HOLDER(78) COLLAR 6-8-6(79) BOLT(80) BOLT(81) COVER TERMINAL HOLDER(82) WIRING DIAGRAM DECAL(82) WIRING DIAGRAM DECAL(83) CORD ASSY
