MAGNETO & ELECTRIC PARTS

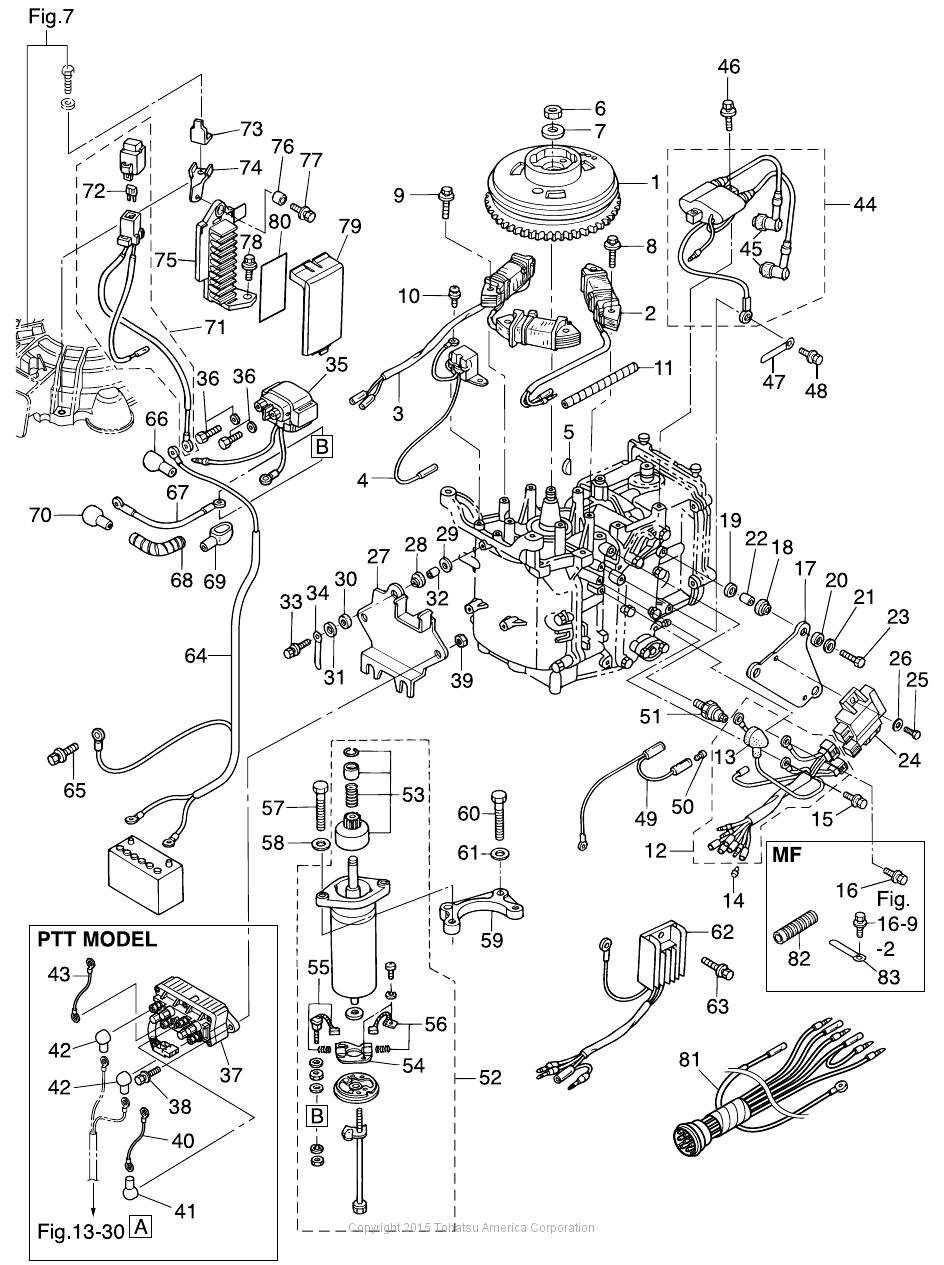

Figure 8
for Model # MFS6A3
(Click Item # for details)

Price Display

(1) FLYWHEEL W/GEAR(2) EXCITER COIL(3) ALTERNATOR ASSY(4) PULSAR COIL(5) KEY T=4(6) NUT 12-P1.25(7) WASHER(8) BOLT(9) BOLT(10) SCREW(11) SPIRAL TUBE PROTECTOR ø10-100(12) CD UNIT CORD ASSY(13) GROMMET(14) CABLE TERMINAL PLUG(14) CABLE TERMINAL PLUG(15) BOLT(16) BOLT(17) CD UNIT BRACKET(18) RUBBER MOUNT 8.5-18-7(19) WASHER 6-16-1.5(20) RUBBER MOUNT 9-16-4.3(21) WASHER 6-16-1.5(22) COLLAR 6.2-9-7.4(23) BOLT(24) CD UNIT(25) PRE-COATED BOLT 6-16(26) WASHER 6-16-1.5(27) ELECTRIC BRACKET ASSY(28) RUBBER MOUNT 8.5-18-7(29) WASHER 6-16-1.5(30) RUBBER MOUNT 9-16-4.3(31) WASHER 6-16-1.5(32) COLLAR 6.2-9-7.4(33) BOLT(34) CLAMP 6.5-87P(35) STARTER SOLENOID(36) BOLT(36) BOLT(37) PTT SOLENOID SWITCH (A)(38) BOLT(39) NUT(40) SOLENOID SWITCH CORD (A) L=80(41) TERMINAL CAP(42) TERMINAL CAP(42) TERMINAL CAP(43) SOLENOID SWITCH CORD (B) L=150(44) IGNITION COIL W/R-CAP(45) PLUG CAP W/RESISTANCE(46) BOLT(47) CLAMP 6.5-47.5P(48) BOLT(49) SEPARATE CORD (BLK)(50) CABLE TERMINAL PLUG(51) OIL PRESSURE SWITCH(52) STARTER MOTOR ASSY(53) PINION ASSY(54) BRUSH HOLDER(55) POSITIVE BRUSH(56) NEGATIVE BRUSH(57) BOLT(58) WASHER(59) STARTER MOTOR BRACKET(60) BOLT(61) WASHER(62) RECTIFIER COMPLETE(63) BOLT(64) BATTERY CABLE L=2500(65) BOLT(66) TERMINAL CAP(67) STARTER CABLE L=200(68) SPIRAL TUBE PROTECTOR ø10-100(69) TERMINAL CAP(70) TERMINAL CAP(71) FUSE WIRE ASSY L=185(72) FUSE 20A(73) FUSE HOLDER BRACKET(74) CABLE TERMINAL HOLDER STAY(75) CABLE TERMINAL HOLDER(76) COLLAR 6-8-6(77) BOLT(78) BOLT(79) COVER(80) WIRING DIAGRAM DECAL(80) WIRING DIAGRAM DECAL(81) CORD ASSY(82) PROTECTOR ø24-70(83) CLAMP 6.5-87P
