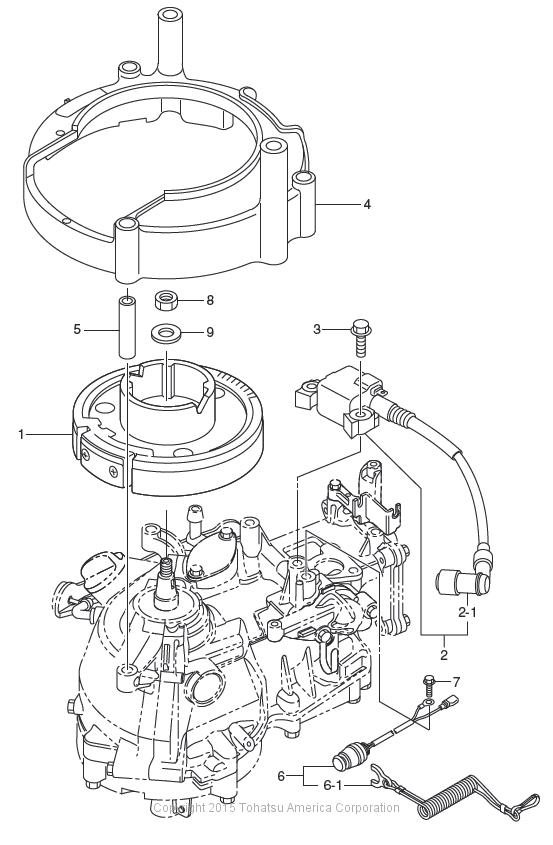

MAGNETO

Figure 6
for Model # MFS2.5B
(Click Item # for details)

Price Display

(1) FLYWHEEL CUP(1) FLYWHEEL CUP (OLD)(2) IGNITER(2) IGNITER (MAU-6A) (OLD)(2-1) PLUG CAP ( WITH RESISTANCE)(3) BOLT(3) BOLT (OLD)(4) FLYWHEEL COVER(5) COLLAR, 6.2-9-35(6) STOP SWITCH ASSY(6) STOP SWITCH ASSY (OLD)(6-1) STOP SWITCH LANYARD(7) BOLT(8) MAGNETO NUT (10P-1.25)(9) WASHER
