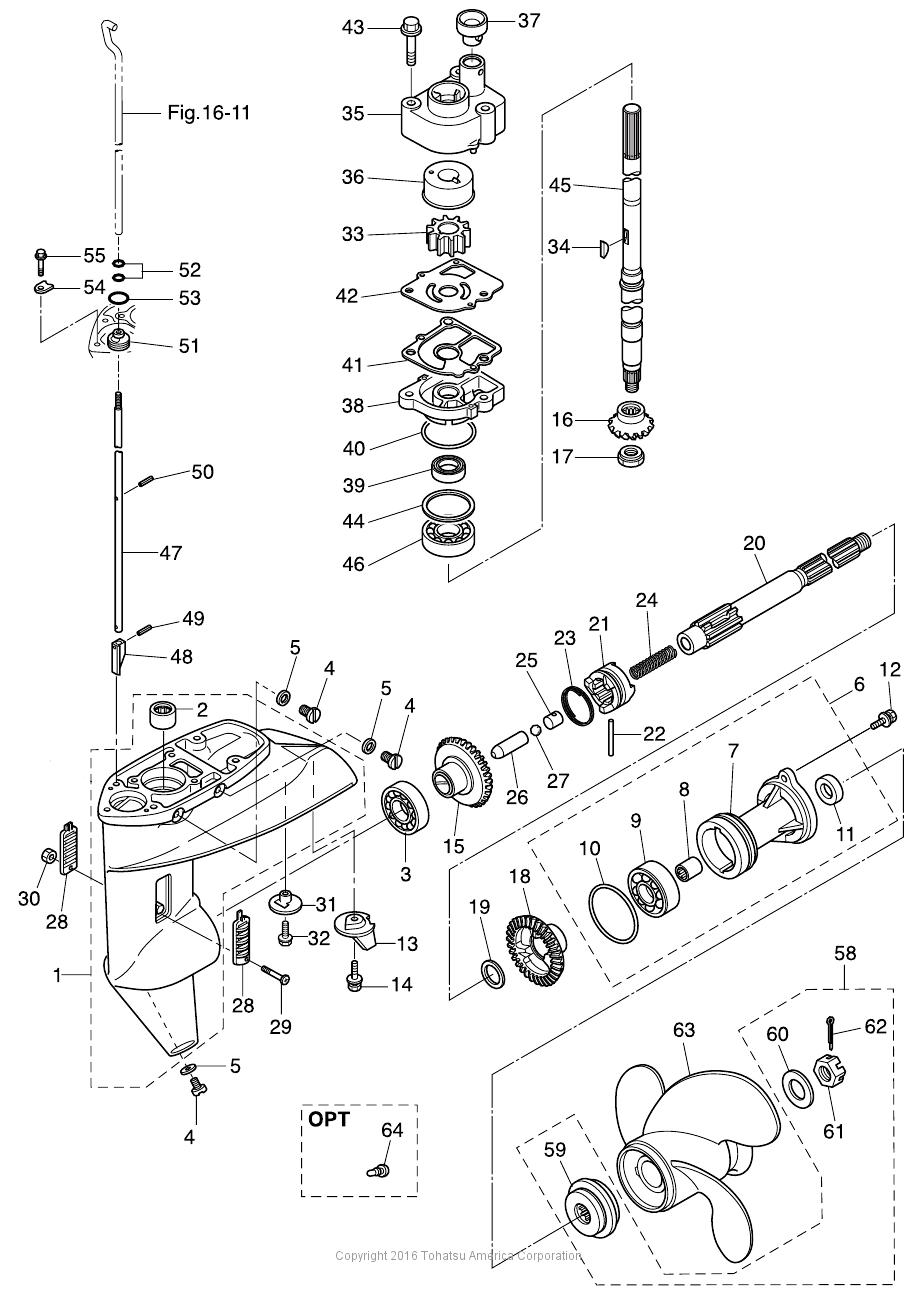

GEAR CASE

Figure 10
for Model # MFS15D
(Click Item # for details)

Price Display

(1) GEAR CASE ASSY(2) ROLLER BEARING(3) BALL BEARING 6205HS(4) PLUG 8-8(4) PLUG 8-8(4) PLUG 8-8(5) GASKET 8.1-15-1(5) GASKET 8.1-15-1(5) GASKET 8.1-15-1(6) PROPELLER SHAFT HOUSING ASSY(7) PROPELLER SHAFT HOUSING(8) ROLLER BEARING 17-24-20(9) BALL BEARING 6205HS(10) O-RING 2.4-59.6(11) OIL SEAL 17-30-9(12) PRE-COATED BOLT(13) TRIM TAB(14) BOLT(15) BEVEL GEAR ASSY (A)(16) BEVEL GEAR B(17) NUT(18) BEVEL GEAR C(19) WASHER 17.1-22-1.5(20) PROPELLER SHAFT(21) CLUTCH(22) PIN ø5-30(23) SNAP(24) SPRING(25) SPRING RETAINER(26) PUSH ROD(27) BALL 3/8(28) WATER STRAINER(28) WATER STRAINER(29) SCREW(30) NYLON NUT 4-P0.7(31) WATER STRAINER(32) SCREW(33) WATER PUMP IMPELLER(34) KEY ø2-16(35) PUMP CASE (UPPER)(36) PUMP CASE LINER(37) WATER PIPE SEAL (LOWER)(38) PUMP CASE (LOWER)(39) OIL SEAL 13.8-26-9.5(40) O-RING 3.5-36(41) GUIDE PLATE GASKET(42) WATER PUMP GUIDE PLATE(43) BOLT(44) SHIM 35-41.9-0.1(44) SHIM 35-41.9-0.15(44) SHIM 35-41.9-0.3(44) SHIM 35-41.9-0.5(45) DRIVE SHAFT (S)(45) DRIVE SHAFT (L)(46) BALL BEARING 7302A(47) CAM ROD (S)(47) CAM ROD (L)(48) CLUTCH CAM(49) SPRING PIN 3-12(50) SPRING PIN(51) CAM ROD BUSHING(52) O-RING 2.4-5.8(53) O-RING 3.5-36(54) STOPPER(55) BOLT(58) PROPELLER HARDWARE KIT(59) THRUST HOLDER(60) WASHER 12.5-32-2.5(61) PROPELLER NUT(62) SPLIT PIN 3-22(63) PROPELLER ASSY (6")(63) PROPELLER ASSY (7")(63) PROPELLER ASSY (8")(63) PROPELLER ASSY (9")(63) PROPELLER ASSY (10")(63) PROPELLER ASSY (11.5")(63) PROPELLER ASSY (7")(64) SUB-WATER INLET HOSE PLUG
