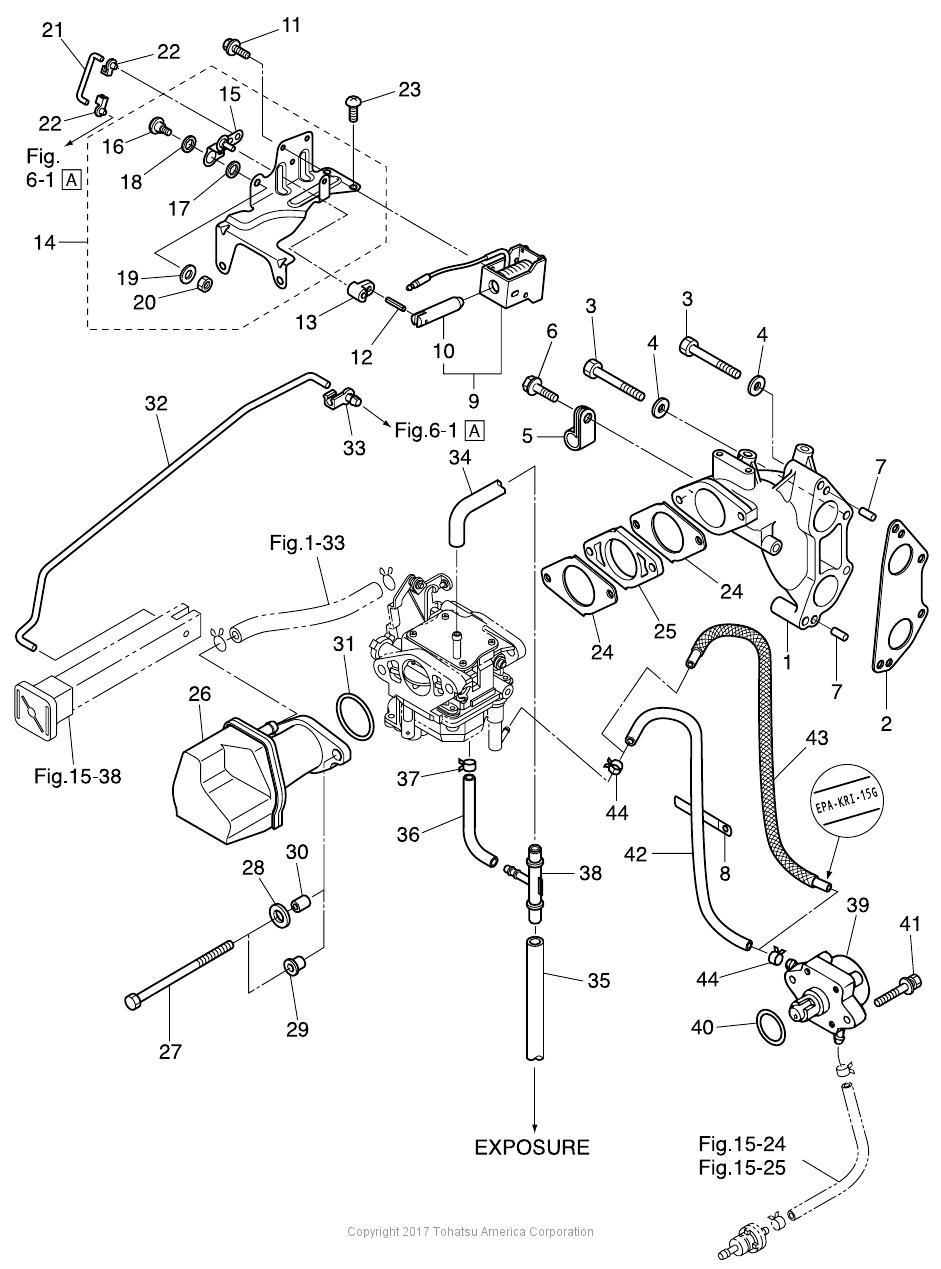

INTAKE MANIFOLD & FUEL PUMP

Figure 5
for Model # MFS9.9D
(Click Item # for details)

Price Display

(1) INTAKE MANIFOLD(2) INTAKE MANIFOLD GASKET(3) BOLT(3) BOLT(4) WASHER(4) WASHER(5) CLAMP 6.5-14L(6) BOLT(7) DOWEL PIN 6-12(7) DOWEL PIN 6-12(8) CLAMP 6.5-47.5P(9) CHOKE SOLENOID(10) PLUNGER(11) SCREW(12) SPRING PIN 3-12(13) CHOKE SOLENOID HOOK(14) CHOKE SOLENOID BRACKET ASSY(15) CHOKE LEVER(16) SCREW M5-6(17) BUSHING 8.1-15-2.9(18) WASHER 8.1-15-1.3(19) WASHER(20) NUT(21) LINK ROD(22) ROD SNAP 1.5-2(22) ROD SNAP 1.5-2(23) BOLT(24) CARBURETOR GASKET(24) CARBURETOR GASKET(25) INSULATOR(26) INTAKE SILENCER ASSY(27) BOLT 6-100(28) WASHER(29) COLLAR 6.1-9-7.4(30) COLLAR 6.2-9-7.4(31) SEAL RING 2.4-35(32) CHOKE ROD(33) ROD SNAP 3.2-2(34) BREATHER HOSE L=290(35) BREATHER HOSE L=50(36) HOSE(37) CLIP ø7(38) NIPPLE 3.5-2-4.5(39) FUEL PUMP ASSY(40) O-RING 3.5-25.7(41) BOLT(42) HOSE(43) FUEL HOSE W/PROTECTOR L=260(44) CLIP ø9.4(44) CLIP ø9.4
