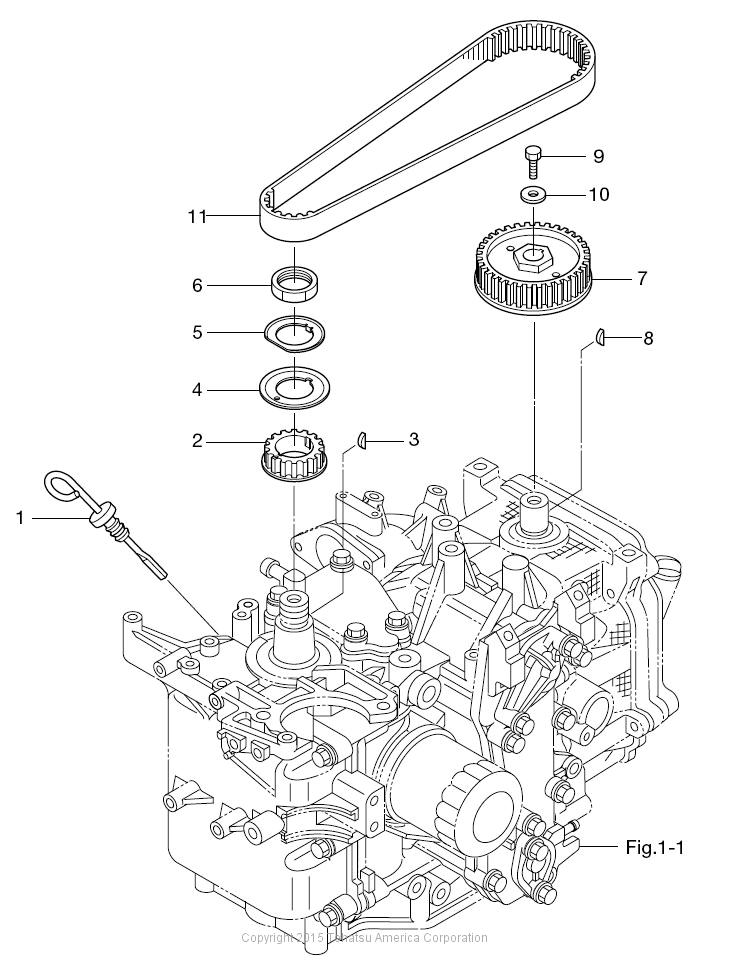

PULLEY & TIMING BELT

Figure 4
for Model # MFS20C
(Click Item # for details)

Price Display

(1) OIL LEVEL GAUGE(2) DRIVE PULLEY (TIMING PULLEY)(3) KEY MAGNETO T=3(4) BELT GUIDE(5) LOCK WASHER(6) NUT PULLEY(7) DRIVEN PULLEY(8) KEY MAGNETO T=3(9) PRE-COATED BOLT(10) WASHER 6.5-19-3.2(11) TIMING BELT
