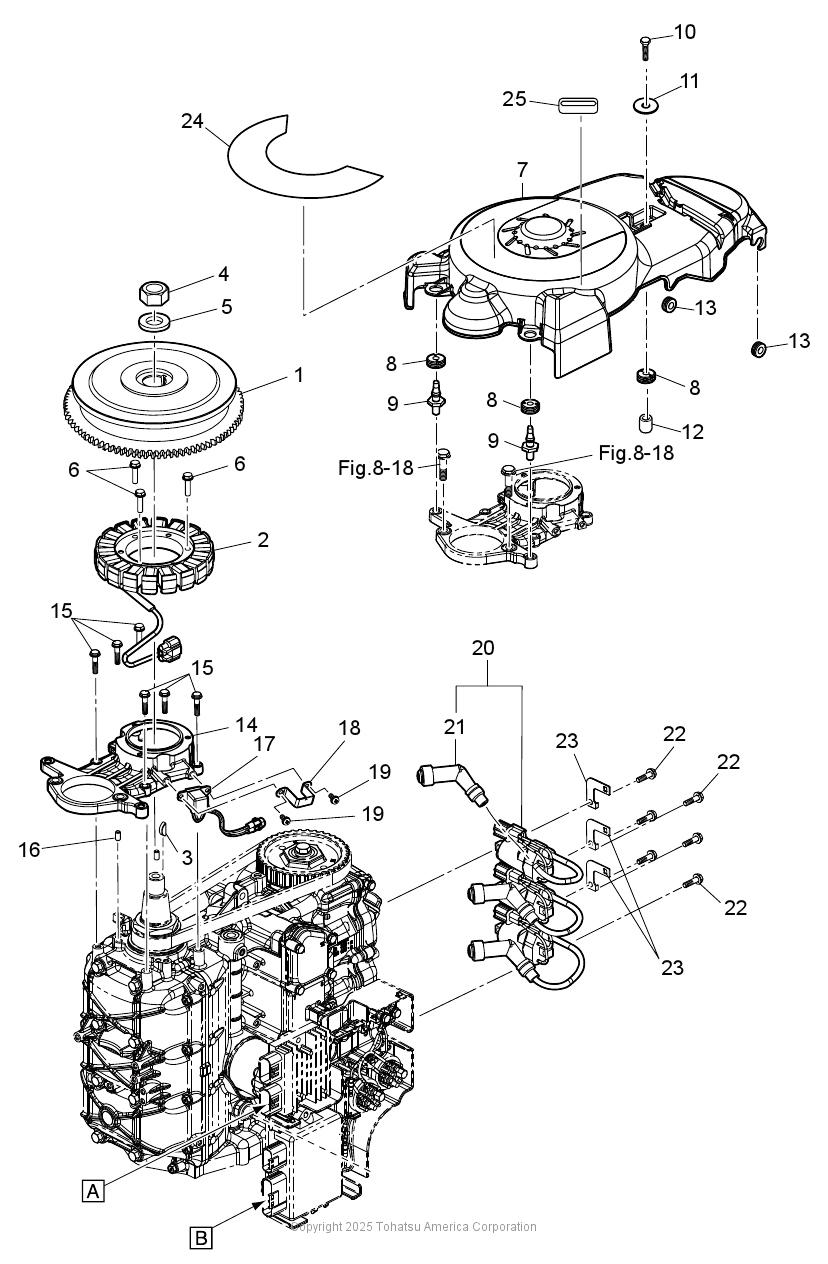

MAGNETO

Figure 7
for Model # MFS60A
(Click Item # for details)

Price Display

(1) FLYWHEEL W/GEAR(2) ALTERNATOR ASSY(3) KEY 19-7-5(4) NUT 20-P1.25(5) WASHER 20.5-37-5(6) BOLT(6) BOLT(7) RING GEAR COVER(8) GROMMET 16-2.5(8) GROMMET 16-2.5(8) GROMMET 16-2.5(9) HOOK(9) HOOK(10) BOLT(11) WASHER 6-16-1.5(12) COLLAR 6.2-9-7.4(13) GROMMET 13-2(13) GROMMET 13-2(14) COIL BRACKET(15) BOLT(15) BOLT(16) DOWEL PIN 6-12(17) PULSAR COIL(18) PULSAR COIL GUARD(19) SCREW(19) SCREW(20) IGNITION COIL/R-CAP(21) PLUG CAP W/RESISTANCE(22) BOLT(22) BOLT(22) BOLT(23) STAY(23) STAY(24) CAUTION DECAL (B)(24) CAUTION DECAL (B)(25) CAUTION DECAL (SIGP)
