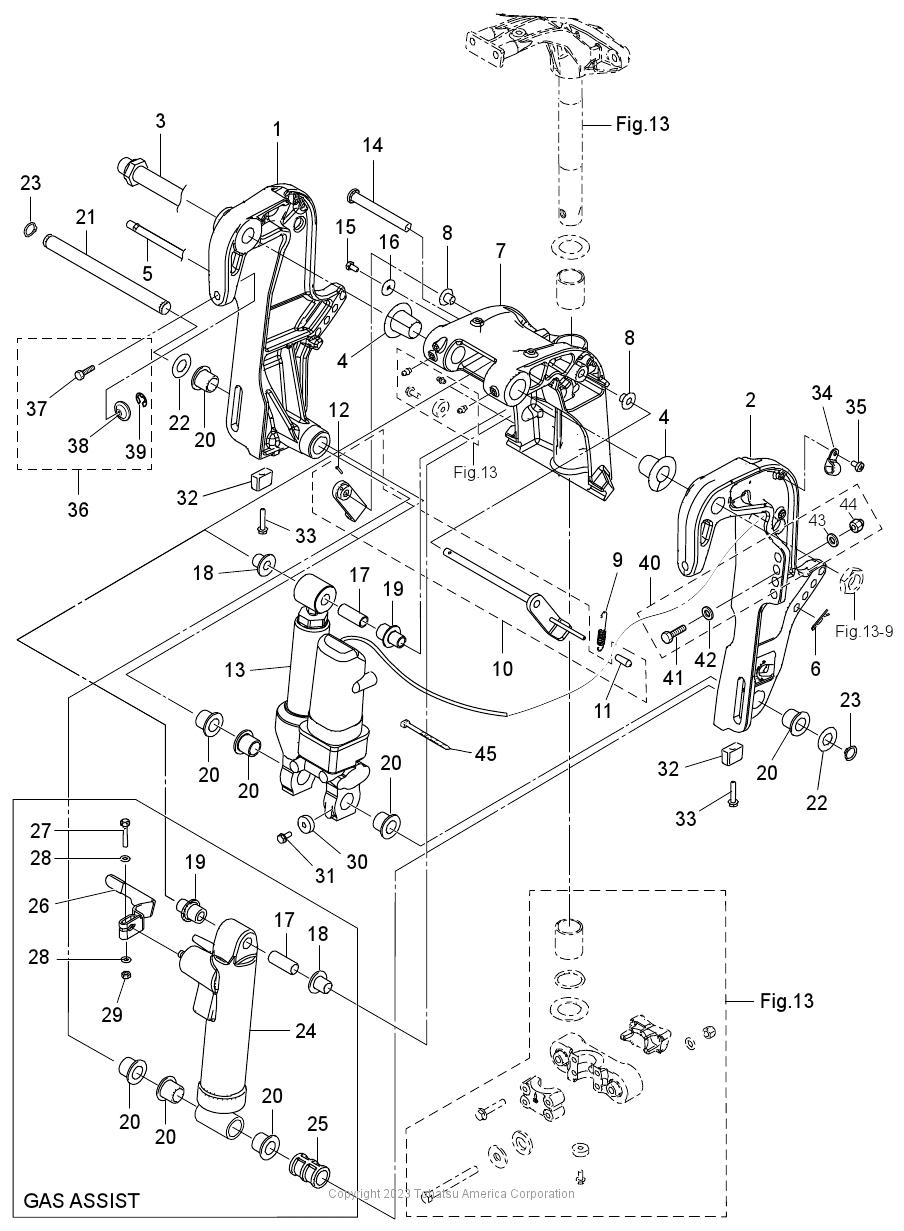

BRACKET (PT & GAS ASSIST)

Figure 14
for Model # MFS30D
(Click Item # for details)

Price Display

(1) CLAMP BRACKET (PTT-R)(1) CLAMP BRACKET (PTT-R)(2) CLAMP BRACKET (PTT-L)(2) CLAMP BRACKET (PTT-L)(3) SWIVEL BRACKET SHAFT ASSY(4) BUSHING(4) BUSHING(5) PTT THRUST ROD(6) SNAP PIN(7) SWIVEL BRACKET ASSY(7) SWIVEL BRACKET ASSY(8) COLLAR 10.2-12-12(8) COLLAR 10.2-12-12(9) TILT STOPPER SPRING(10) TILT STOPPER KIT(10) TILT STOPPER KIT(11) TILT STOPPER GRIP(12) SPRING PIN 3.5-16(13) PT ASSY(14) CYLINDER PIN (UPPER)(15) BOLT(16) WASHER 6.5-23-1.5(17) BUSHING 13-16-40(17) BUSHING 13-16-40(18) BUSHING 13-17-19.5(18) BUSHING 13-17-19.5(19) BUSHING(19) BUSHING(20) BUSHING 18-24-22(20) BUSHING 18-24-22(20) BUSHING 18-24-22(20) BUSHING 18-24-22(20) BUSHING 18-24-22(20) BUSHING 18-24-22(20) BUSHING 18-24-22(20) BUSHING 18-24-22(21) CYLINDER PIN (LOWER)(22) WASHER 18.2-34-1(22) WASHER 18.2-34-1(23) C-RING D=18(23) C-RING D=18(24) GAS SHOCK ABSORBER(25) COLLAR(26) REVERSE LOCK LEVER(27) BOLT 6-35(28) WASHER(28) WASHER(29) NUT(30) ANODE(31) BOLT(32) ANODE(32) ANODE(33) BOLT(33) BOLT(34) CLAMP 6.5-14L(35) SCREW(36) CLAMP SCREW KIT(37) CLAMP SCREW (PTT)(38) CLAMP SCREW PAD(39) E-RING D=5(40) RIGGING BOLT SET(41) BOLT 12-105 P1.25(42) WASHER 13-34-3(43) WASHER(44) NYLON NUT 12-P1.25(45) BAND LEAD WIRE 300
