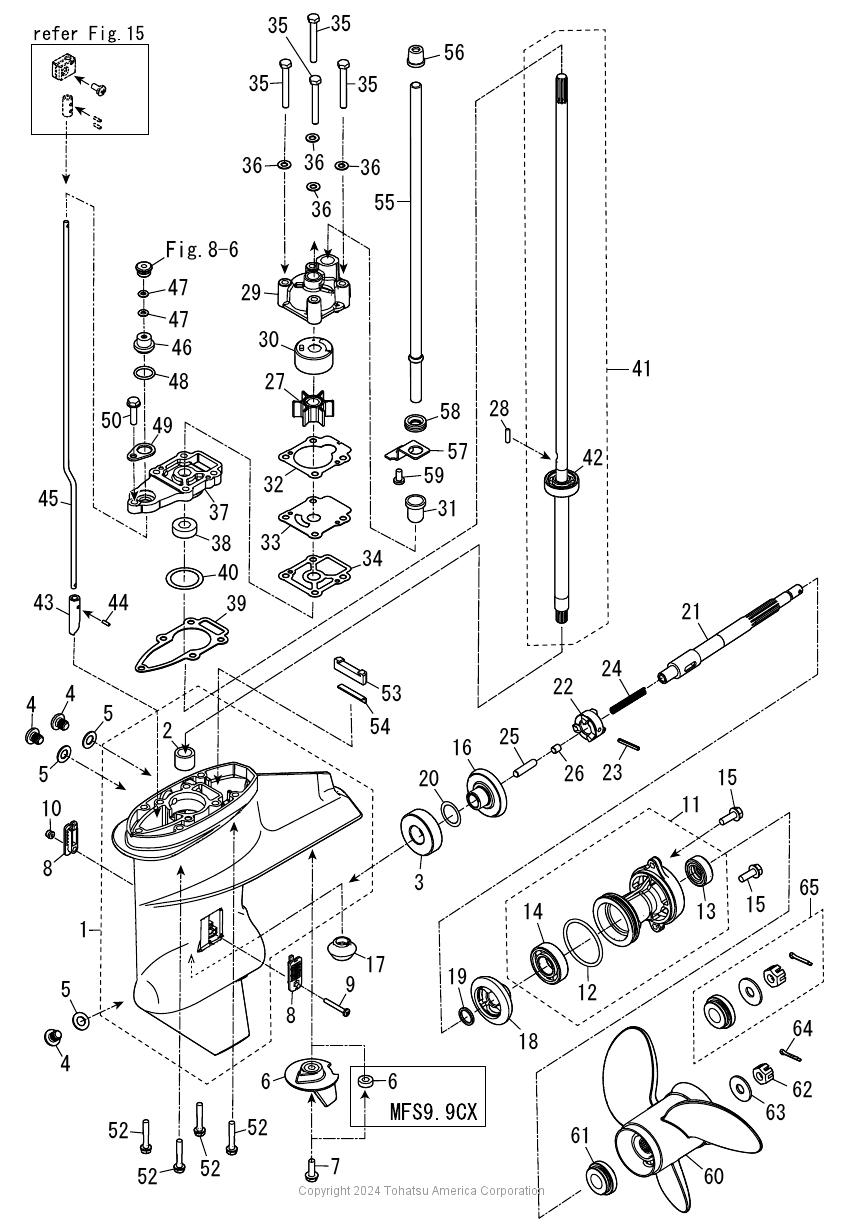

GEAR CASE

Figure 9
for Model # MFS8C
(Click Item # for details)

Price Display

(35) BOLT(35) BOLT(36) WASHER(36) WASHER(36) WASHER(36) WASHER(37) PUMP CASE (LOWER)(38) OIL SEAL 12-24-8(39) PUMP CASE GASKET (LOWER)(40) SHIM 28-36.8-0.1(40) SHIM 28-36.8-0.15(40) SHIM 28-36.8-0.3(41) DRIVE SHAFT ASSY (S)(41) DRIVE SHAFT ASSY (L)(42) BALL BEARING 6301(43) CLUTCH CAM(44) SPRING PIN 3-10(45) CAM ROD (S)(45) CAM ROD (L)(46) CAM ROD BUSHING(47) O-RING 2.5-4.9(47) O-RING 2.5-4.9(48) O-RING 2.4-15.4(49) STOPPER(50) BOLT(52) BOLT 6-35(52) BOLT 6-35(52) BOLT 6-35(52) BOLT 6-35(53) WATER SEAL RUBBER(54) WATER SEAL PLATE(55) WATER PIPE (S)(55) WATER PIPE (L)(56) WATER PIPE SEAL (UPPER)(57) LOCK PLATE(58) WATER PIPE AUXILIARY MOUNT 13-2.5(59) SCREW(60) PROPELLER ASSY (7")(61) THRUST HOLDER(62) PROPELLER NUT(63) WASHER 10.5-28-2(64) SPLIT PIN 3-18(65) PROPELLER HARDWARE KIT(1) GEAR CASE ASSY(2) ROLLER BEARING 15-21-16(3) BALL BEARING 6204(4) PLUG 8-8(4) PLUG 8-8(4) PLUG 8-8(5) GASKET 8.1-15-1(5) GASKET 8.1-15-1(5) GASKET 8.1-15-1(6) TRIM TAB(6) TRIM TAB(7) BOLT(8) WATER STRAINER W=17(8) WATER STRAINER W=17(9) SCREW(10) NYLON NUT 4-P0.7(11) PROPELLER SHAFT HOUSING ASSY(12) O-RING 3.2-47(13) OIL SEAL 15-28-10(14) BALL BEARING 6004(15) BOLT(15) BOLT(16) BEVEL GEAR A(17) BEVEL GEAR B(18) BEVEL GEAR C(19) WASHER 15.2-19-1.9(20) SHIM 21-28-0.1(20) SHIM 21-28-0.15(21) PROPELLER SHAFT(22) CLUTCH(23) PIN 3.5-28(24) SPRING(25) PUSH ROD(26) SPRING RETAINER(27) WATER PUMP IMPELLER(28) KEY ø3-11(29) PUMP CASE (UPPER)(30) PUMP CASE LINER(31) WATER PIPE SEAL (LOWER)(32) PUMP CASE GASKET(33) WATER PUMP GUIDE PLATE(34) GUIDE PLATE GASKET(35) BOLT(35) BOLT
