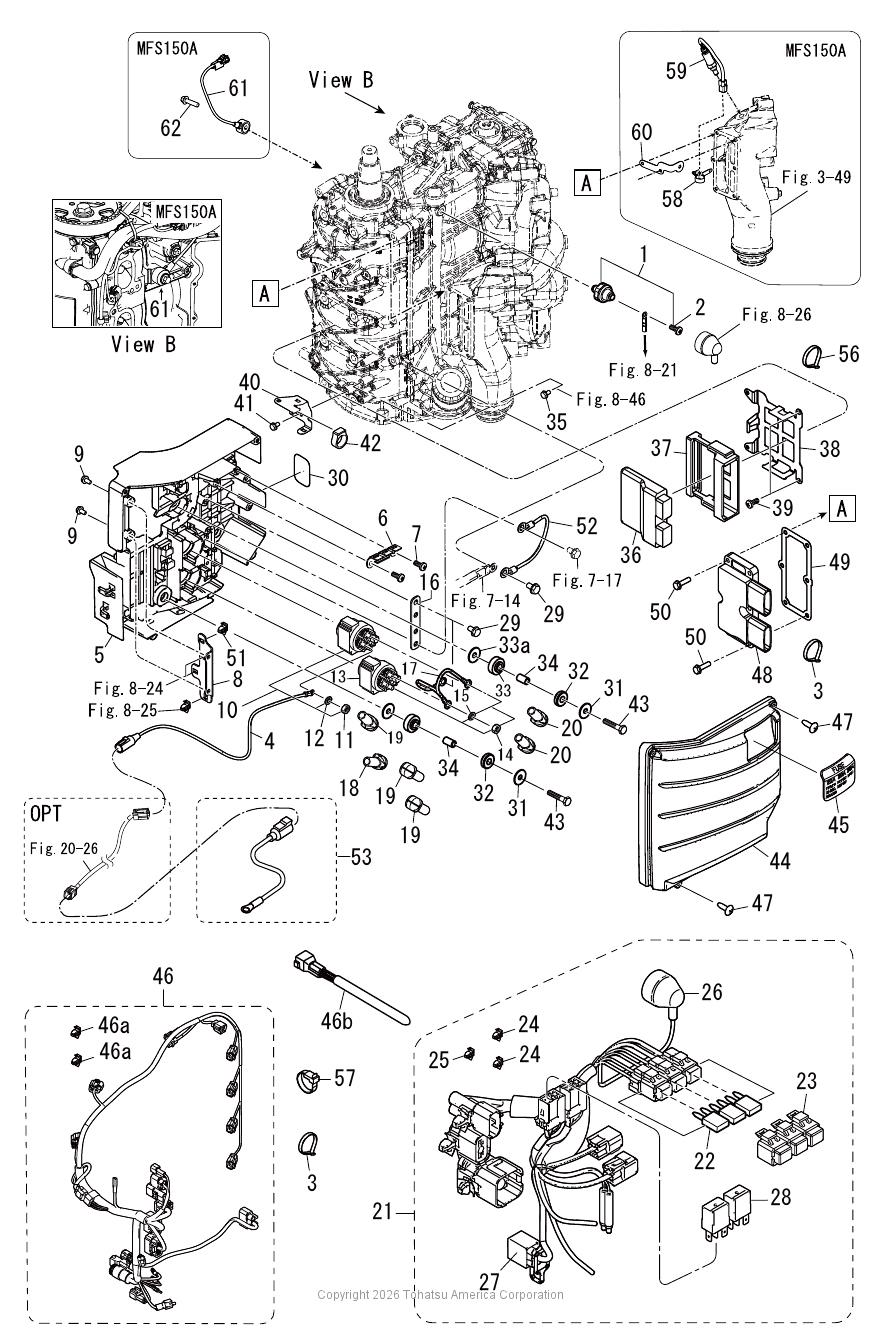

ELECTRIC PARTS

Figure 8
for Model # MFS150A
(Click Item # for details)

Price Display

(1) OIL PRESSURE SWITCH(2) SCREW(3) BAND 205(3) BAND 205(4) STARTER CABLE(5) BRACKET(6) FUSE HOLDER BRACKET(7) TAPPING SCREW 5-12(8) CORD HOLDER T=1.5MM(9) BOLT(9) BOLT(10) PTT SOLENOID SWITCH (A)(11) NUT(12) SPRING WASHER(13) PTT SOLENOID SWITCH (B)(14) NUT(15) SPRING WASHER(16) BRACKET T=2(17) SOLENOID SWITCH CORD (B) L=150(18) TERMINAL CAP 13-13-28(19) TERMINAL CAP 8-13-28(19) TERMINAL CAP 8-13-28(19) TERMINAL CAP 8-13-28(20) TERMINAL CAP 8-13-28(20) TERMINAL CAP 8-13-28(21) CORD ASSY(22) FUSE 30A(22) FUSE 20A(23) CAP (G)(23) CAP (Y)(24) CLAMP(24) CLAMP(25) CLAMP(26) GROMMET(27) CABLE TERMINAL PLUG(28) RELAY(29) BOLT(29) BOLT(30) PLUG CAP NUMBER DECAL(31) WASHER 6.5-21-1(31) WASHER 6.5-21-1(32) MOUNT 8.5-14-2.5(32) MOUNT 8.5-14-2.5(33) RUBBER MOUNT 8.5-14-2.5(33A) WASHER 6.5-21-1(34) SPACER 6.2-9-15.7(34) SPACER 6.2-9-15.7(35) BOLT(36) ECU ASSY(37) ECU HOLDER(38) PLATE(39) SCREW(40) CORD HOLDER(41) BOLT(42) RUBBER MOUNT(43) BOLT(43) BOLT(44) COVER(45) GROMMET(46) CORD ASSY(46A) CLAMP(46A) CLAMP(46B) TERMINATING RESISTOR(47) TAPPING SCREW M5-16(47) TAPPING SCREW M5-16(48) RECTIFIER COMPLETE(49) RECTIFIER COMPLETE GASKET(50) BOLT(50) BOLT(51) CLAMP(52) GROUND CABLE L=120(53) STARTER CABLE(56) BAND 202(57) BANDø2.5-ø32(58) BAND(59) OXYGEN SENSOR(60) CONNECTOR STAY(61) KNOCK SENSOR(61) KNOCK SENSOR(62) BOLT
